A few months ago I wrote about our latest asset context, Drop Tables. Drop Tables, like Loot Boxes, use a weighted rarity system to determine which asset(s) you are rewarded. Since building these features, I have been asked by several developers to outline the method I used to randomly select an asset based on predefined weighting. While I would like to take all the credit, I actually used a method I read about several years ago that was really smart. Since I can’t find the post any longer, I’ll attempt to explain it in my own words.
The goal I had was to create a system that selected a random asset from a list where each asset has been provided a number weight. Assets with a higher weighting should be selected more frequently, but not completely block assets with a lower weighting from being selected.

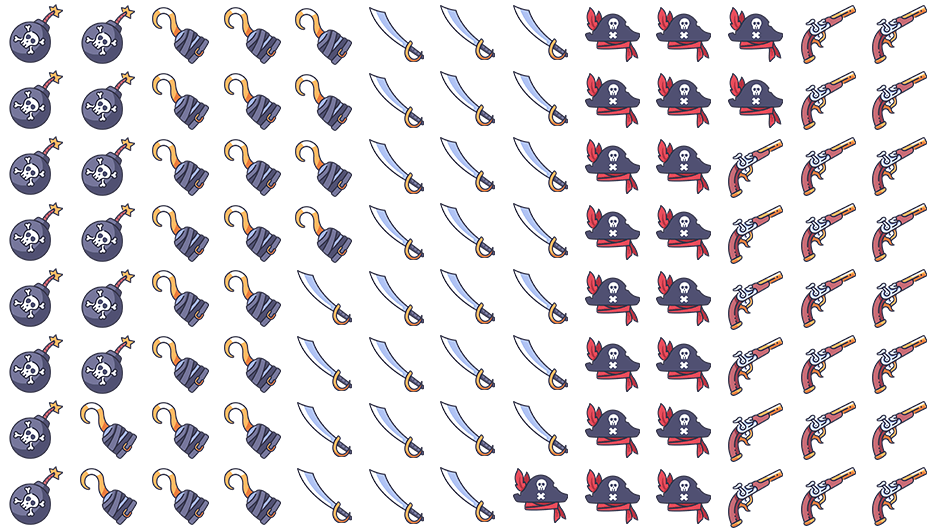

While there were several ways to approach and possibly solve this task, I had to also consider that LootLocker users might have hundreds of assets in a Loot Box and therefore I needed a system that could scale easily. For example, one solution could be to list all assets multiple times based on the weighting number: for example if the `Pirate Hat` asset had a weight of 3 and the `Pirate Hook` had a weight of 1, the list would look like this:
Randomly selecting from this list would deliver the expected results in that the `Pirate Hat` would be selected 3 out of 4 times. But when you have 100 different assets and 100 different weights you’re suddenly selecting from a list of thousands - if not tens of thousands - of assets and the game has to wait much longer for a response. This is no good.
The solution I ended up using for this system sounds more complicated at first but is ultimately more performant. This is how it works:

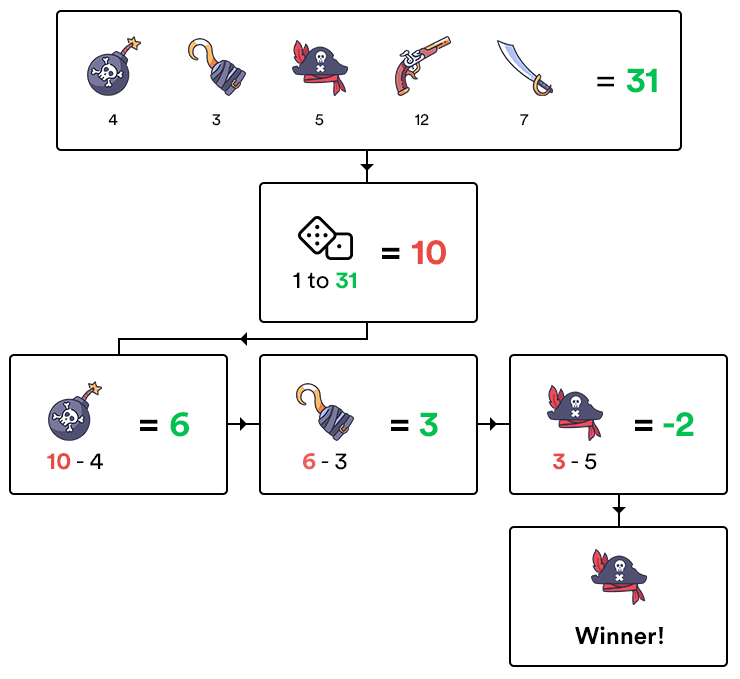

Here’s a diagram that hopefully explains it more clearly.
The idea behind this method is that the random number we pick in Step 2 is getting lower every time we iterate over another asset (if the result isn’t ≤ 0), meaning that eventually an asset will always be selected and it’s most likely to be one with a high weighting.
So, there you have it - an explanation of how the weighted random system for our Loot Boxes work, and mostly our Drop Tables. They do get a little more complicated because we have concepts such as Roll Count and support for dropping multiple items though. But that’s a story for another blog post. If you have any questions or feedback, feel free to reach out via our Discord or tweet me directly.
